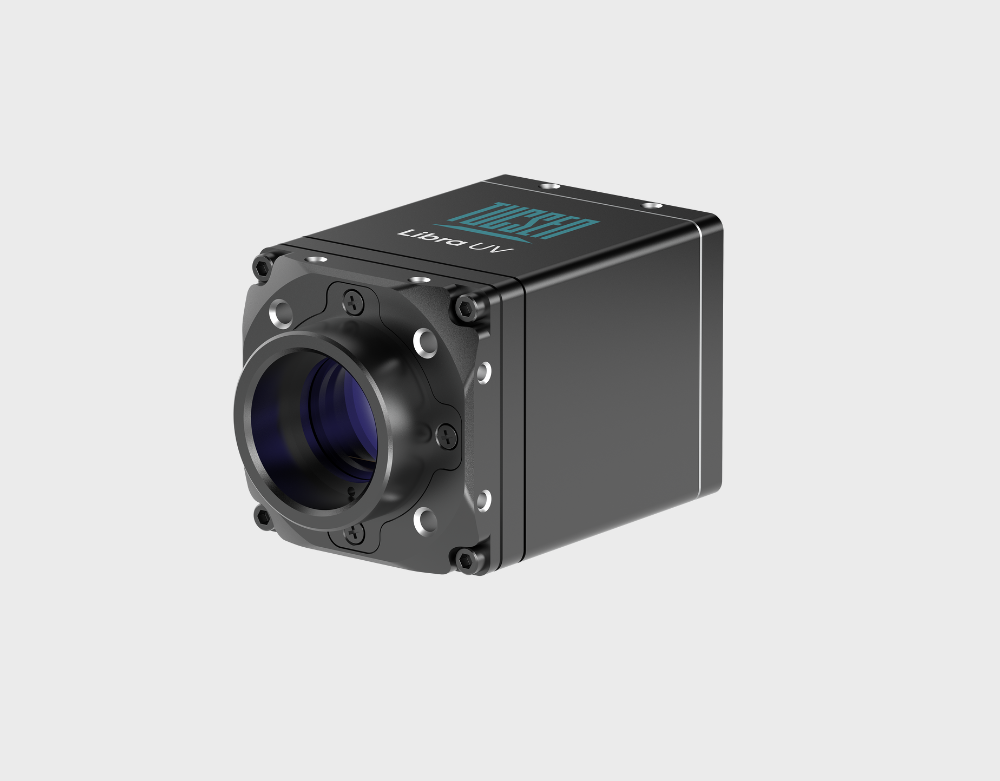

Libra UV GR (Glass Removed)

Wide Spectrum/UV Enhancement

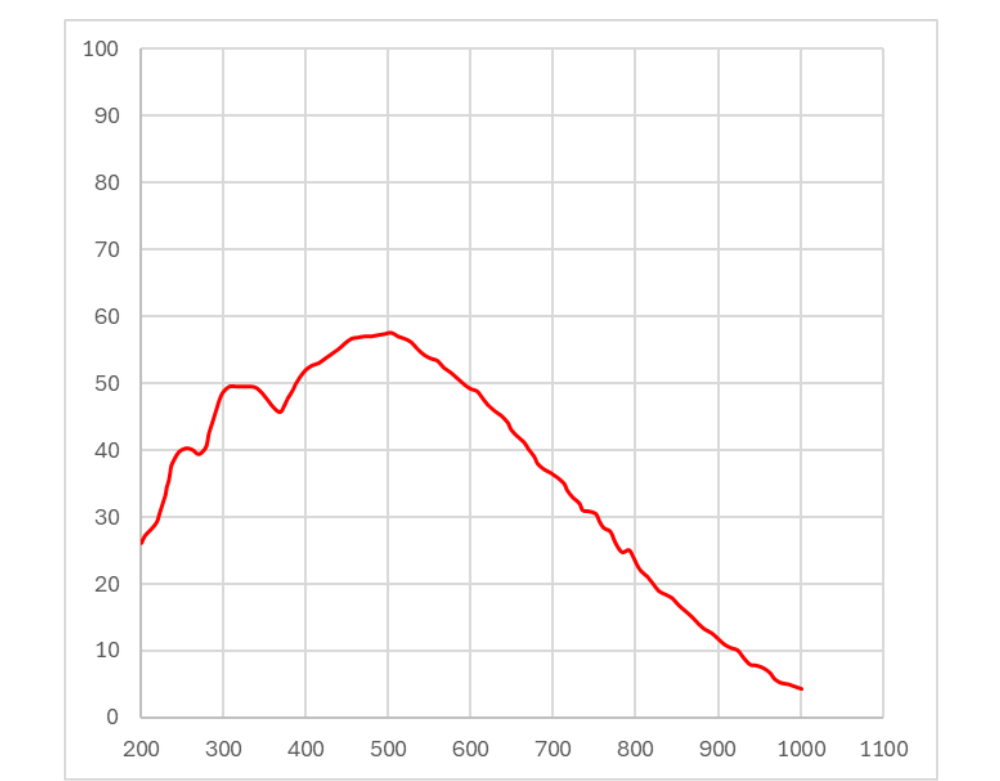

Libra UV leverages Sony’s IMX487 back-illuminated CMOS technology, offering a broad spectral range from 200 nm to 1000 nm. It delivers exceptional sensitivity in the ultraviolet (UV) band, particularly between 200-400 nm, with a quantum efficiency reaching 48% at 365 nm, ensuring superior UV response.

Global Shutter High-Speed Imaging

With global shutter technology, Libra UV captures fast-moving subjects with clarity. It features a high-speed 10G GigE interface, enabling frame rates of up to 100 fps at 12-bit and 152 fps at 8-bit at its full 8.1-megapixel resolution, providing outstanding performance for high-speed imaging applications.

Compact Structural Design

Designed for seamless integration into detection equipment and instrument systems, Libra UV maintains a compact form while delivering high-quality imaging performance. Its space-efficient design ensures compatibility with various applications where size and efficiency are critical.
