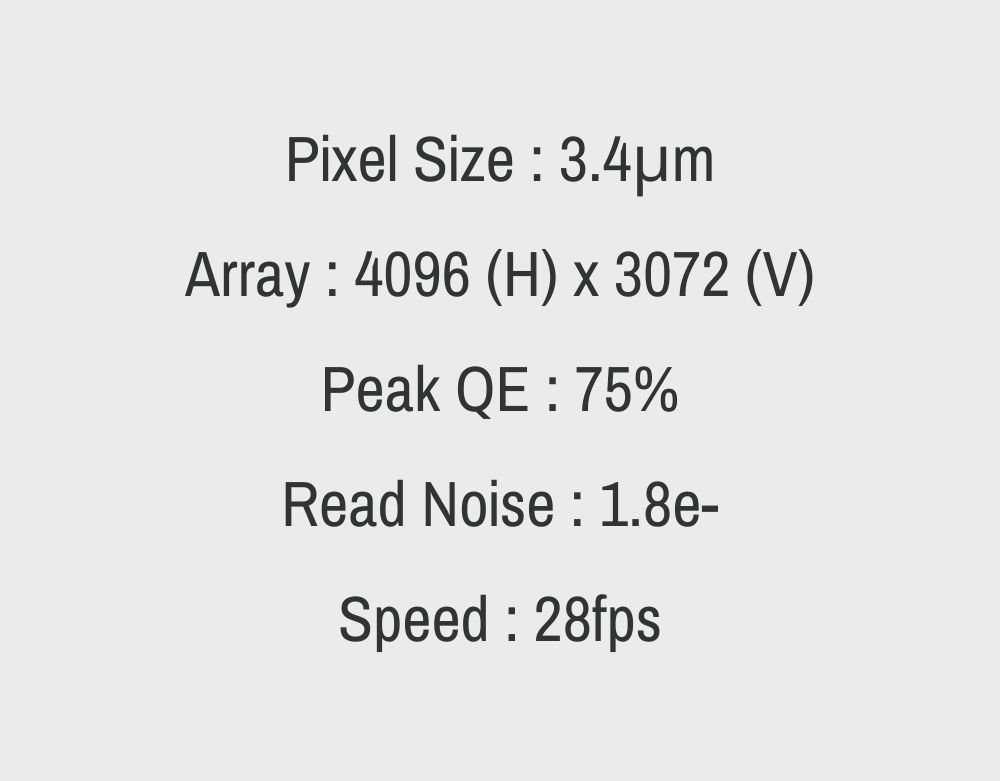

Key Specifications
Global Shutter, 12MP, High-Speed
Overview

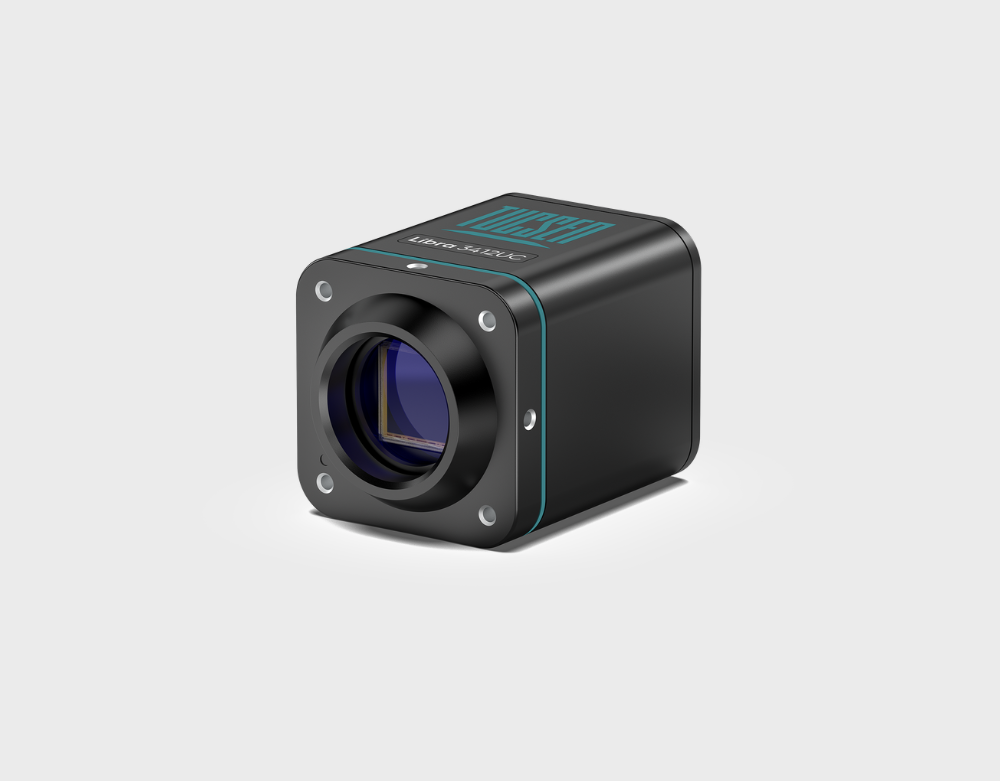

The Libra 3412M sCMOS is a global shutter monochrome camera developed by Tucsen for seamless integration into instruments. It employs front-illuminated sCMOS technology, providing a wide spectral response from 350nm to 1100nm and high sensitivity in the near-infrared range. Its compact design ensures high-speed performance and dynamic range, along with advanced cooling technology, enhancing system integration and overall performance.
Wide Spectral Response
With its front-illuminated sCMOS technology, the Libra 3412UM sCMOS offers an extensive spectral response (350nm to 1100nm) and exceptional sensitivity in the near-infrared region. This makes it suitable for a variety of fluorescence imaging applications, particularly in multi-channel scanning scenarios.
Global Shutter
The camera can achieve full resolution speeds of up to 18 fps at 12-bit depth and 28 fps at 8-bit depth, greatly enhancing throughput efficiency for various instruments.
