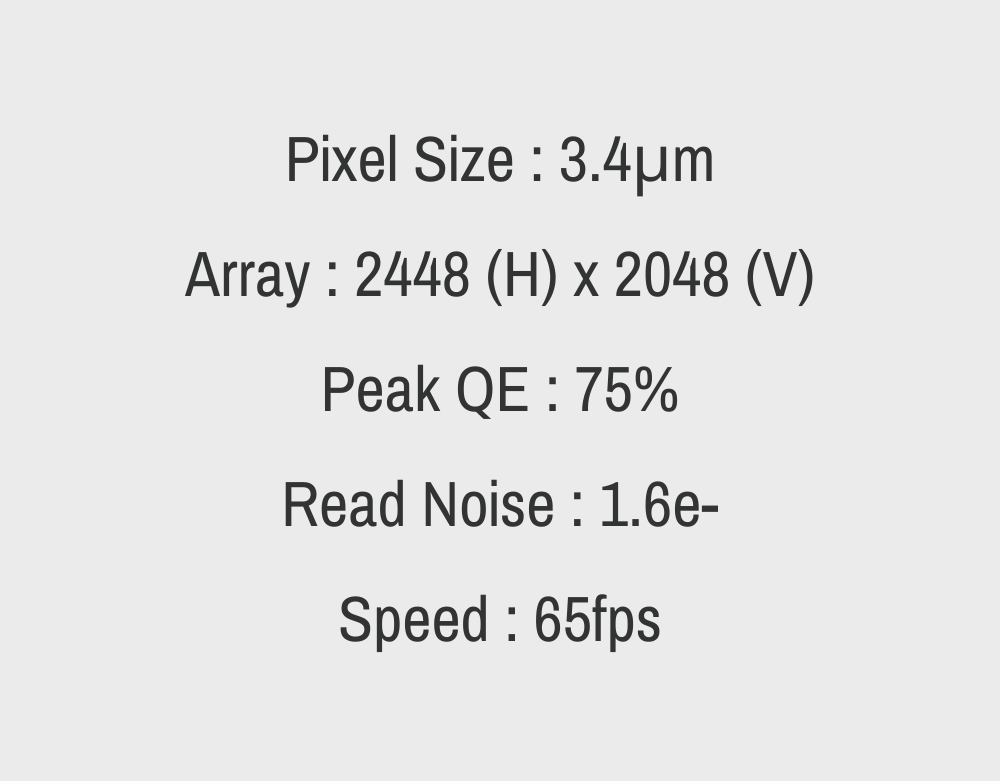

Key Specifications
Global Shutter, 5MP, High-Speed
Overview

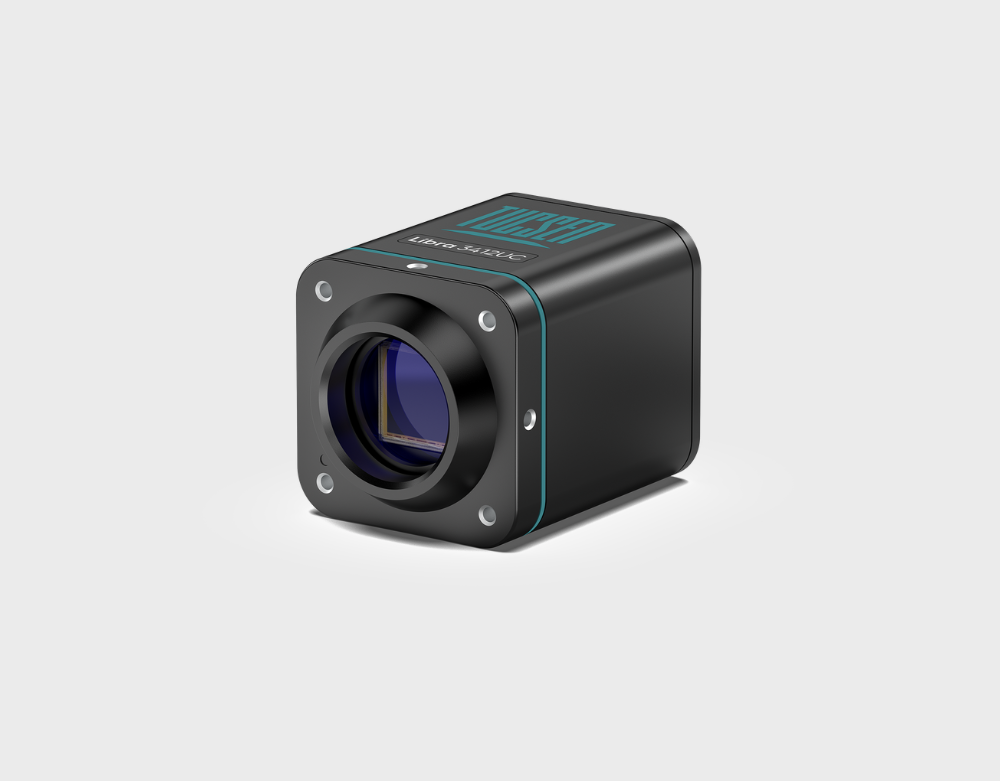

The Libra 3405UM sCMOS is a global shutter monochrome camera developed by Tucsen for seamless instrument integration. It features front-illuminated sCMOS technology, providing a wide spectral response from 350nm to 1100nm and high sensitivity in the near-infrared range. Its compact design ensures high-speed performance and dynamic range, along with advanced cooling technology, enhancing overall system integration and performance.

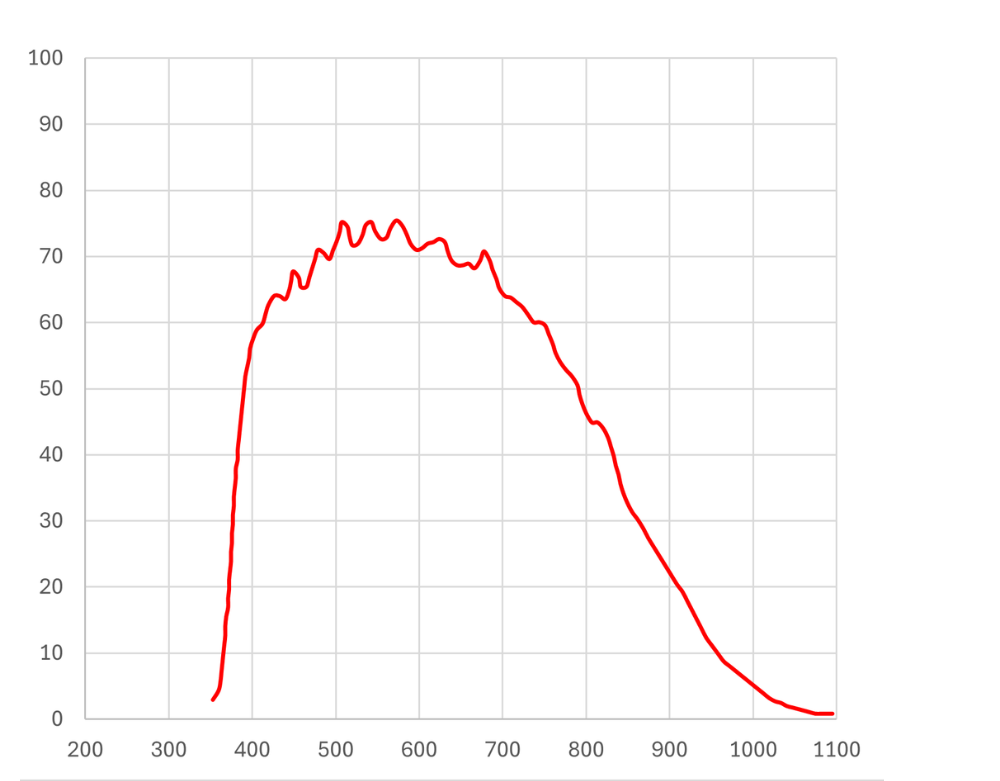

Wide Spectral Response
With its front-illuminated sCMOS technology, the Libra 3405M sCMOS offers an extensive spectral response (350nm to 1100nm) and excellent sensitivity in the near-infrared region. This makes it an ideal choice for a variety of fluorescence imaging applications, particularly in multi-channel scanning scenarios.
Global Shutter
The camera can achieve full resolution speeds of up to 66 fps at 12-bit depth and 44 fps at 8-bit depth, significantly enhancing throughput efficiency for batch detection in instrument systems.
