Key Specifications
Overview

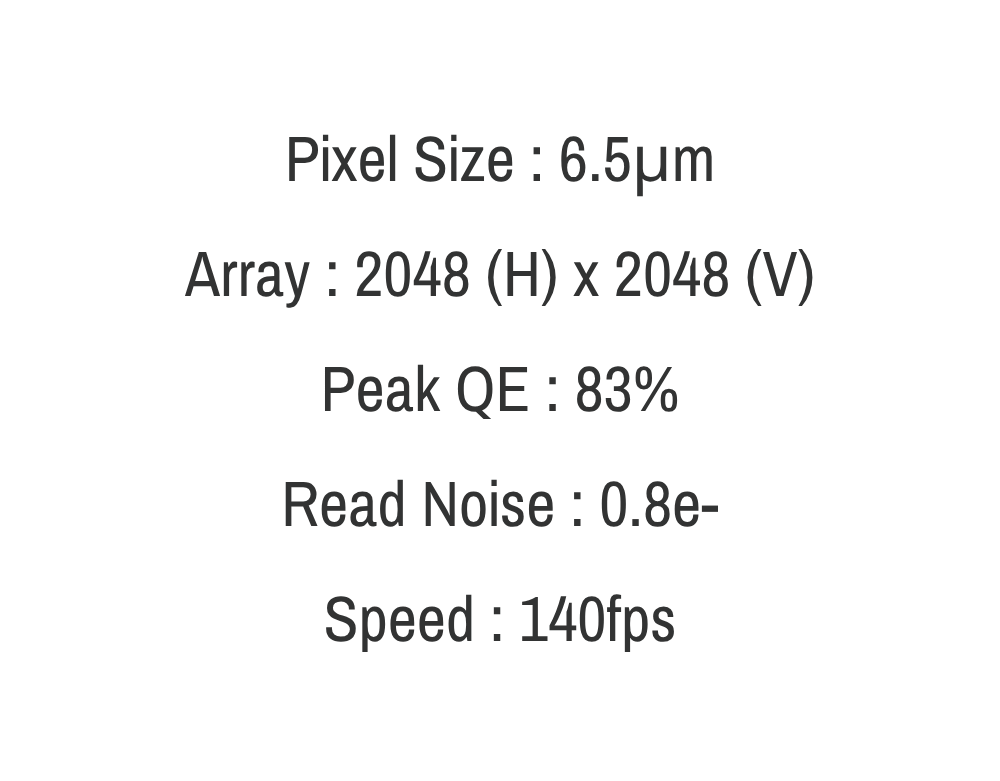

The Aries 6504-LT-10G camera is designed to deliver all the power of sCMOS technology in an industrialized housing. The camera features a 2048 × 2048 array of 6.5-micron with a peak QE of 83% and read noise as low as 0.8 electrons, while delivering 140 fps.
Integration Focused

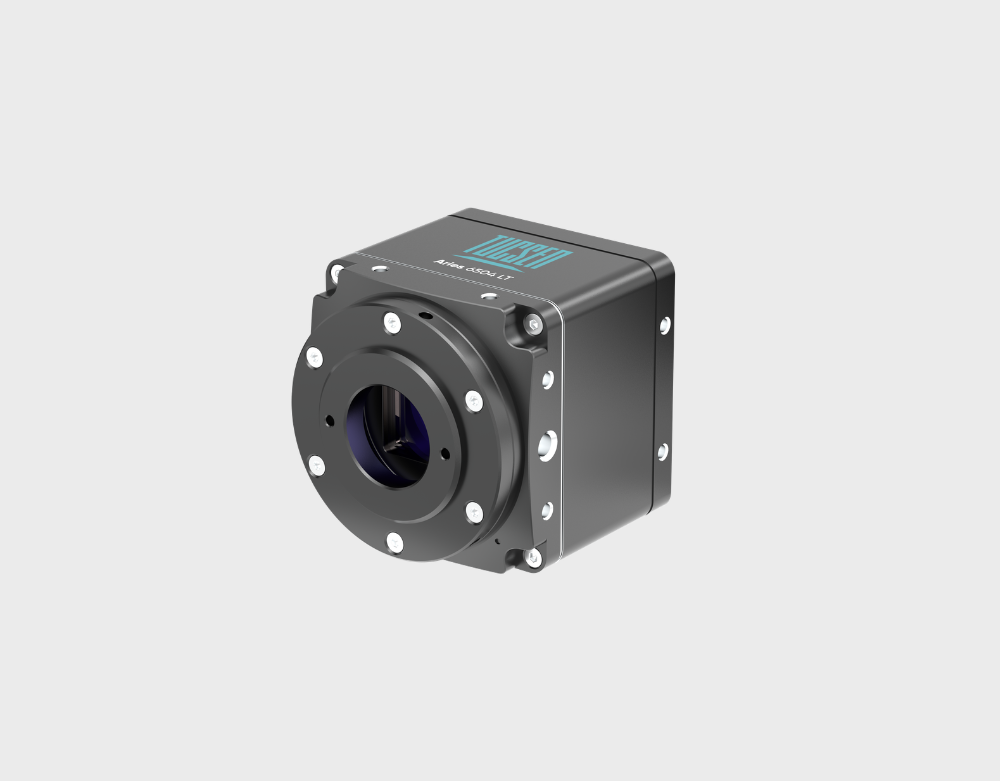

Designed with integration in mind, the Aries 6504-LT-10G is compact (65 mm × 65 mm × 66 mm) and lightweight (465 g), while delivering the pixel size, QE and low read noise required for demanding imaging applications. Air cooling is provided by means of a fan.
Data & Triggering
For straightforward integration, the Aries 6504-LT-10G uses a USB 3.2 Gen 2 interface or CoaXPress to deliver 140fps. The camera also provides a comprehensive range of trigger signals—including Readout, Exposure Out, Trigger Ready, High, Low and Readout—via a simple Hirose interface.
